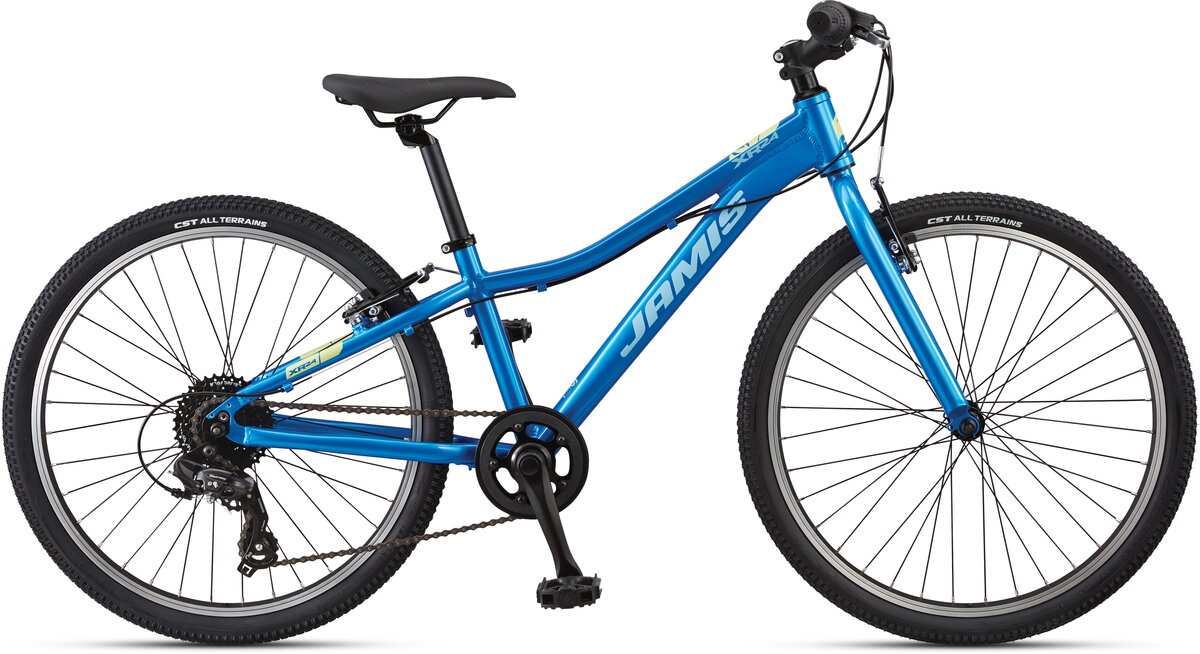

Jamis XR24

Jamis XR24
  • Color: Gloss Black
  • Color: Sky Blue
  • Color: Violet Powder
  • Color: Ninja Green
Size:
24-inch
Please select options

Details

SIMPLE, FUNCTIONAL, RELIABLE.

Sometimes less is more. With a lightweight aluminum frame, single-chainring drivetrain, and a rigid no-nonsense fork XR24 is just about everything a kid needs for two-wheeled adventures.

Geometry

Geometry Chart:
SIZE12” B
TT EFFECTIVE 20.59 / 523
HT ANGLE 70°
ST ANGLE 72°
CHAINSTAY 16.14 / 410
WHEELBASE 38.62 / 981
FORK RAKE 1.77 / 45
BB HEIGHT 10.28 / 261
HEADTUBE 3.94 / 100
STANDOVER 22.09 / 561

Specs

Frame 6061 aluminum main tubes, zero-stack head tube, over- sized stays, replaceable derailleur hanger
Fork Unicrown, hi-tensile steel, 28.6 steerer
Wheels Alloy 36H black anodized rims with brushed brake tracks, alloy MTB hubs with nutted axles, 14G black electroplated spokes
Tires CST MTB Sport, 24 x 1.95"
Bottom Bracket Sealed cartridge
Crankset Forged alloy crank, 152mm, 32T chainring and protective outer rock-ring
Shifters Shimano RevoShift 35, 7-speed
Rear Derailleur Shimano TY300 rear
Cassette/Freewheel Shimano TZ500 freewheel, 14-28, 7-speed
Chain KMC Z51
Brakes Alloy linear pull type with Tektro youth specific levers
Handlebars MTB alloy riser, 6 ° sweep x 20mm rise x 580mm wide
Tape/Grips Kraton for Grip Shift
Stem MTB alloy threadless, 15 ° rise x 60mm extension
Headset Zero-stack internal cup threadless, 15mm cone spacer
Seatpost Alloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp
Saddle Jamis ATB Youth
Pedals MTB platform, hi-impact resin

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Black / 24-inch 845436089218 07-3682BK 210000054544
Sky Blue / 24-inch 845436089232 07-3684BL 210000054545
Ninja Green / 24-inch 845436089225 07-3683GN 210000054546
